Integrated Surface DTH Drilling Rig, KT12

Down-the-hole drill rig for open-pit mining

Integrated Surface DTH Drilling Rig, KT12

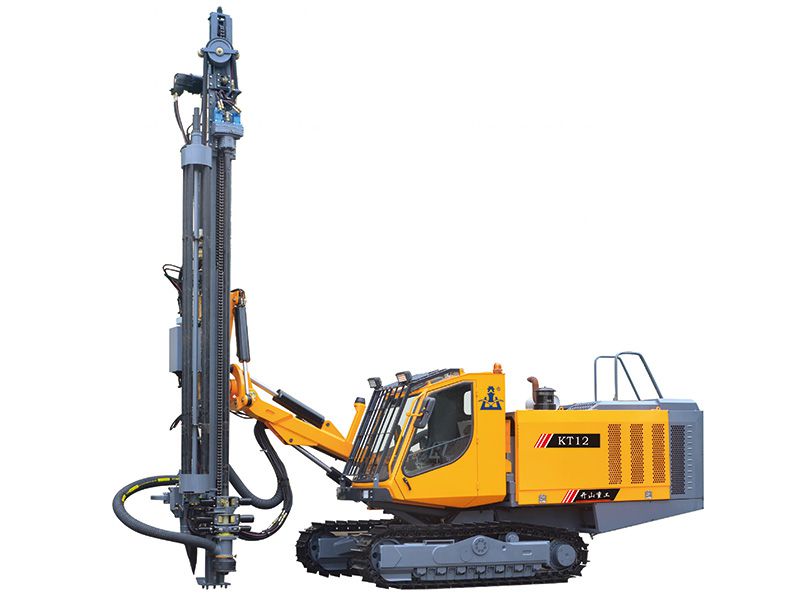

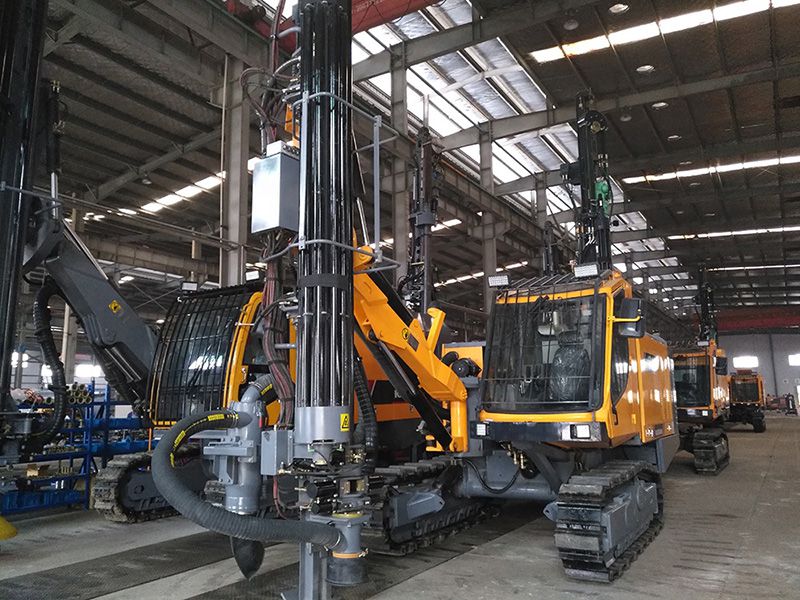

Integrated Surface DTH Drilling Rig, KT12 Integrated Surface DTH Drilling Rig, KT12

This machine is powered by a two-terminal engine that meets China Stage III emission standards. The engine activates the compressor and hydraulic transmission system, through which the machine can drill holes ranging from 115-152 mm in different angles, making it the best choice for operators when considering drilling blastholes and pre-splitting holes in open-pit mines and stonework sites. With a hands-free rod handling system and a lubrication module, the machine can be operated by a single person who can control the machine through a console in the cab. The machine can drill holes in a better way with its interior anti-jamming system and an angle and depth indicator. It is also equipped with an advanced dust collector, a big cab, a powerful air-conditioner and a quality speaker, providing a cozy working evniornment for operators.

Request a Quote
Technical Specifications
Model KT12
Dimensions 9830×2580 ×3320mm
Total weight 17500kg
Rock hardness F=6-20
Hole diameter ⌀115-152mm
Ground clearance 420mm
Track oscillation angle ±10°
Tramming speed 0-3km/h
Gradebility 25°
Traction  120kN
Maxium torque 3.45kN.m
Rotation speed 0-100r/min
Boom lift angle Up: 47°, down: 20°
Boom swing angle Left: 21°, right: 50°
Swing angle Left: 35°, right: 95°
Tilt angle 114°
Feed extension 1353mm
Feed length 4490mm
Maximum feed force 25kN
Feed method Roller chain
Drilling depth 28m
Rod number 6+1
Rod diameter ⌀89×4000mm
DTH hammer K40, K50
Engine Cummins QSL8.9-C360-30
Cylinder number 6
Total power 265kW/2200rpm
Hydraulic pump 5× gear pump
Screw air compressor Zhejiang Kaishan
Free air delivery of compressor 19m³/min
Discharge pressure of compressor 273 psi
Tramming controller Hydraulic pilot
Drilling controller Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-jamming
Voltage 24V DC
Cab safety Meet the requirements of ROPS&FOPS
Cab noise level < 85dB(A)
Seat  Adjustable
Air-conditioning Cooling/heating
Entertainment Radio+MP3
