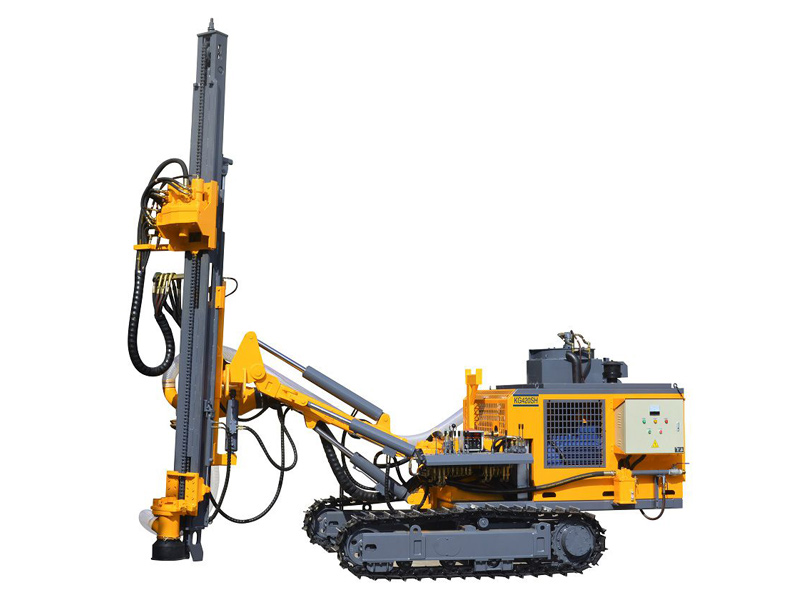

Rotary Blasthole Drilling Rig, KG420S/KG420SH

Surface down-the-hole drill rig for open-pit mining

Rotary Blasthole Drilling Rig, KG420S/KG420SH

This surface down-the-hole drill rig features both a diesel engine and an electric motor, which allows operators to work in different modes. Owing to a piston motor and reinforced continuous track, the drilling machine works better in ramp climbing. Moreover, the wide swing and tilt angles make the unit suitable for various drilling applications. Characterized by two rotational motors that can boost feed and pull out force and reliable operation of the machine, this rotary blasthole drilling rig is made of reinforced materials strong enough for it to be moved from site to site. This heavy land drilling machine is also equipped with a dry dust collector which can effectively reduce pollutants to the air.

Request a Quote
Technical Specifications
Model KG420S KG420SH
Total weight 5800kg 6100kg
Dimensions 6400×2250×2700mm 6400×2420×2700mm
Rock hardness F=6-20
Drilling diameter Ø90-152mm
Hole depth 25m
RPM 0-90rpm
Maximum rotation torque 5000N.m(Max)
Pull out force 40kN
Feed type Oil cylinder+roller chain
Feed extension travel 3175mm
Tramming speed 0-2.5km/h
Gradeability ≤30°
Ground clearance 515mm
Tilt angle Down:110°, up:35°, total:145°
Swing angle Left:91°, right:5°, total:96°
Boom tilt angle Down:55°, up:15°, total:70°
Boom swing angle Left:32°, right:32°, total:64°
Boom extension 1220mm
Engine type YC4DK80-T302(58kW/2200r/min)KG420/Yuchai YC4DK80-T302(58kW/2200r/min) (55kW/1460r/min)/Motor(55kW/1460r/min)
DTH hammer K40
Drilling rod Ø76×2m+Ø76×3m
Flushing air 13-20m³/min
Maximum height of horizontal holes 2850mm
Minimum height of horizontal holes 350mm
Details
  • Rotary Blasthole Drilling Rig, KG420S/KG420SH
  • Rotary Blasthole Drilling Rig, KG420S/KG420SH
  • Rotary Blasthole Drilling Rig, KG420S/KG420SH
  • Rotary Blasthole Drilling Rig, KG420S/KG420SH
Recommended Air Compressors
  • Diesel engine portable screw air compressor
    KaishanLGCY-13/13
    KaishanKSCY-580/13
    KaishanLGCY-18/17
Read More

Note: Air compressor selection depends on the hole diameter and air hose length
