Rotary Blasthole Drilling Rig, KG430S/KG430SH
Surface down-the-hole drill rig for open-pit mining

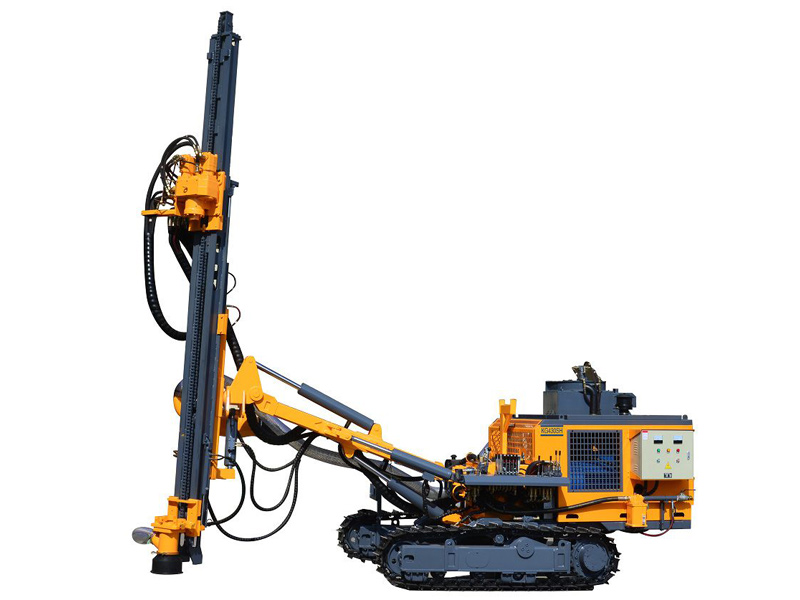

The rotary blasthole drilling rig is equipped with disel engine of less emission and it is also equipped with an electrical motor, which means that a worker can operate the drilling rig between two modes. This kind of drill rig features a piston motor and reinforced continuous track, both of which help the rotary blasthole drilling rig work better in ramp climbing. Additionally, wide swing and tilt angles make the unit suitable for various drilling applications. Characterized by two rotational motors that can boost feed and pull out force and reliable operation, this construction tool is made of reinforced materials strong enough for its transportation from site to site. A dry dust collector is included in this drilling machine which effectively reduces pollutants to the air.
Technical Specifications
Model | KG430S | KG430SH |
Total weight | 6000kg | 6200kg |
Dimensions | 6700×2200×2700mm | 6700×2400×2700mm |
Rock hardness | F=6-20 |
Hole diameter | Ø90-152mm |
经济钻深/Depth of economical | 25m |
RPM | 0-90rpm |
Maximum rotation torque | 5000N.m(Max) |
Pull out force | 40kN |
Feed type | Oil cylinder+roller chain |
Feed extension travel | 3980mm |
Tramming speed | 0-2.5km/h |
Gradeability ing | ≤30° |
Ground clearance | 515mm |
Tilt angle | Down:135°, up:0°, total:135° |
Swing angle | Left:91°, right:5°, total:96° |
Boom tilt angle | Down:55°, up:15°, total:70° |
Boom swing angle | Left:45°, right:45°, total:90° |
Oscillation angles | ±10° |
Boom extension | 900mm |
Engine type | Diesel engine YC4DK80-T302(58kW/2200r/min)/Yuchai YC4DK80-T302(58kW/2200r/min) Electrical motor Y250M-4(55kW/1460r/min)KG420H/Motor Y250M-4(55kW/1460r/min) |
DTH hammer | K40 |
Drilling rod | Ø76×3m |
Flushing air | 13-20m³/min |
Maximum height of horizontal holes | 3700mm |
Minimum height of horizontal holes | 350mm |

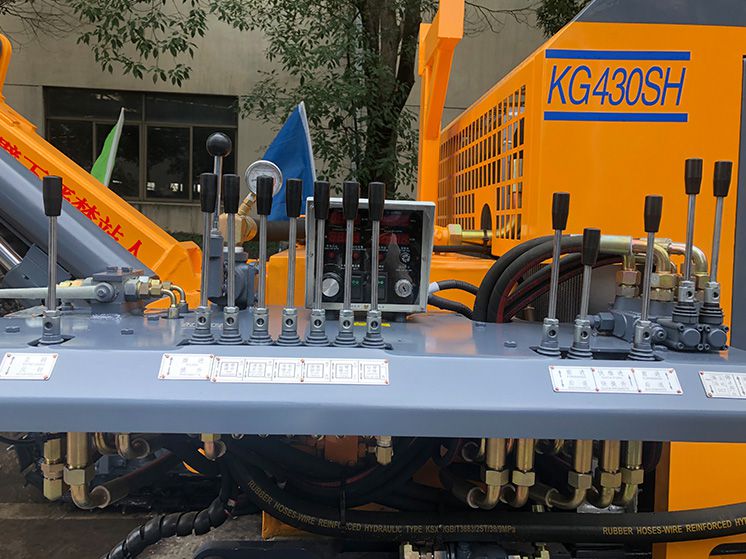

Details
Recommended Air Compressors
- Diesel engine portable screw air compressor
Kaishan LGCY-18/17
Kaishan LGCY-19.5/19
Note: Air compressor selection depends on the hole diameter and air hose length
