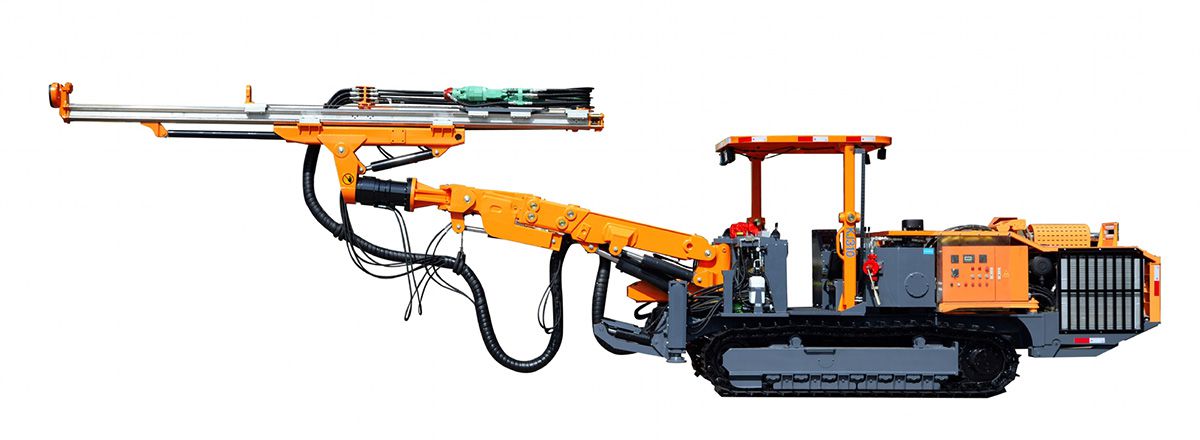

Hydraulic Tunneling Drilling Rig, KJ310

Face drilling rig

Hydraulic Tunneling Drilling Rig, KJ310
  • Dimensions (L×W×H): 10700×1650×1900/2500mm
  • Weight: Approx.12000kg
  • Maximum gradeability: 25°
  • Range of cross section: 12-35m²

KJ310 hydraulic tunneling drilling rig is specially designed for incline tunnel development at a maximum inclination angle of 25 degree. This underground drill rig is an ideal solution for drilling hard rock mines with cross sections of 12-35m².

Request a Quote
Video Show
Hydraulic Tunneling Drilling Rig
Hydraulic Tunneling Drilling Rig
Hydraulic Tunneling Drilling Rig

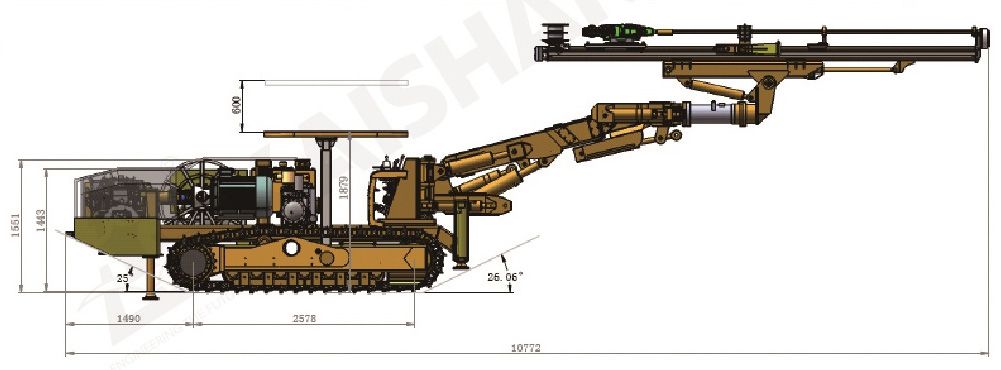

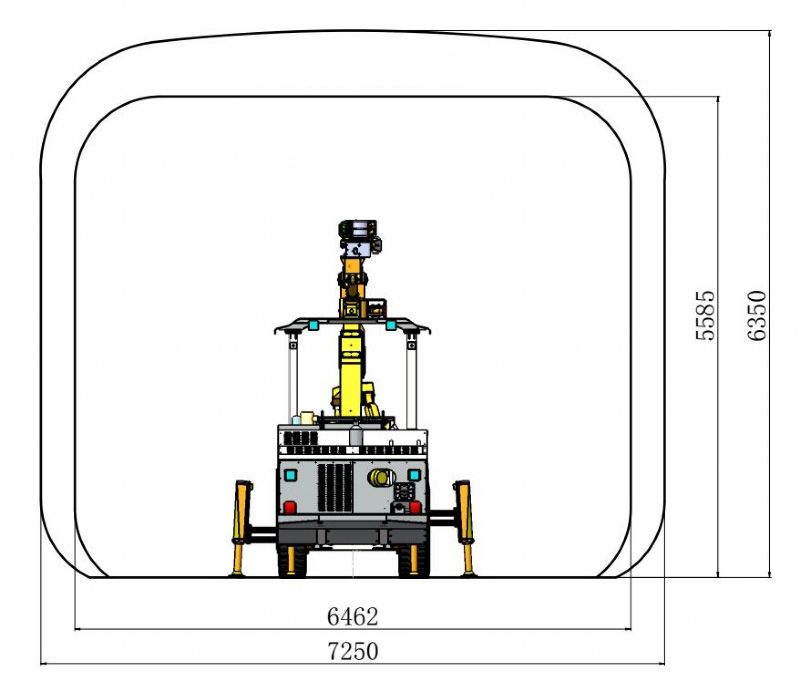

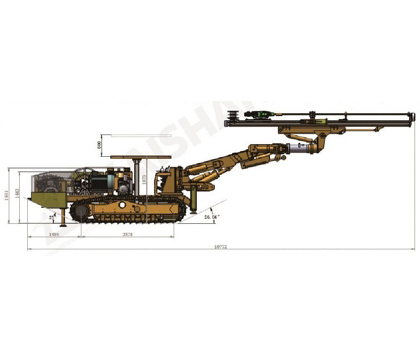

Structure Diagram
Structure Diagram
Structure Diagram
Technical Specifications
Dimensions and weight
Length 10700mm
Width 1650mm
Height 1900/2500mm
Weight Approx.12000kg
Tramming speed on flat ground 2.5km/h
Maximum gradeability 25°
Safety protection
Noise level < 100dB(A)
Lifting safety roof Meet the requirements of FOPS and ROPS
Air and water system
Air compressor 1×JN4 Oil consumption of lubrication 180-250g/h
Capacity of air compressor 0.5m³/min
Pressure 6-8bar Water pump 1×CR3 1×CR5
Shank lubrication device Electronic pulse lubrication pump Power 1.5kW 5.5kW
Air consumption of lubrication 0.3m³/min Capacity of water pump 3m³/h 6m³/h
Chassis
Diesel engine Cummins QSB3.9-C80-31 60kW/2200rpm Parking braking Wet multi-disc brake
Exhaust purification Exhaust catalyzer Travelling braking Wet multi-disc brake
Drive system Track travelling driven by double-speed motor Fuel tank 60L
Drilling system
Rock drill (drifter) 1×HC50/R38 1×HC109/R38 1×HC95LM/R38
Impact power 13kW 18.8kW 21kW
Impact flow 105L/min 135L/min 100-120L/min
Impact pressure 130bar 135bar 180bar
Maximum rotary pressure 150bar 150bar 210bar
Impact frequency 62Hz 47Hz 62Hz
Torque 325Nm 780Nm 764Nm
Hole diameter Ø32-76mm Ø42-102mm Ø42-102mm
Beam rotation 360°
Feed extension 1600mm
Model of drill boom K26F
Form of drill boom Automatic parallelism
Boom extension 1200mm
Electric hydraulic power unit
Motor 45kW 55kW 75kW
Impact/Feed/Positioning Variable displacement axial piston pump
Rotation Gear pump
Filter fineness 10µ
Hydraulic oil tank 240L
Hydraulic cooler Water cooler
Working voltage 380V
Frequency 50Hz
Starting method Star/delta
Cable reel 1×F440
Length of reel cabling 100m 80m
Cable specifications 3×35+3G6 3×50+3G6
Features
  • Independently designed drilling rig boom uses Cartesian coordinate action principle to enable quick and simple drilling positioning since it can achieve that the feed beam is automatically parallel to the origin position; The robust drill boom offers optimum shaped coverage, with no blind spot for drilling holes, the boom can also execute cross-cut drilling and bolt hole drilling operations;
  • The hydraulic tunneling drilling rig is configured with medium/low pressure hydraulic drifters from Montabert. Hydraulic hoses and seals do not operate in high pressure conditions since the hydraulic drifter works under low oil pressure, thus resulting in prolonged service life, high reliability and less maintenance cost when compared to high pressure hydraulic drifter;
  • The rock drill (drifter) uses stepped piston, which improves the efficiency of impact energy transfer from drill to rock, increases drilling speed, lowers the consumption of drilling tools while keeping the drill rig in good condition;
  • Low-emission Cummins diesel engine is included in the hydraulic tunneling drilling rig, achieving stepless speed adjustment; The crawler chassis ensures high gradeability;
  • The exhaust purification device is equipped to greatly improve the underground working environment;
  • The hydraulic tunneling drilling rig uses dual-circuit wet multi-disc service brake and emergency stop buttons at multiple points, greatly improving the safety during underground mining and tunneling operations;
  • The spacious operating environment, lifting protective roof and considerably designed automatic functions of the face drill rig allow the operator to focus on drilling safely, quickly and accurately;
  • Optimal layout of the drilling rig enables operator has a good visibility, and all parts at service points are securely protected, and accessible for easy maintenance;
  • KJ310 hydraulic tunneling drilling rig is equipped with the original power control valve block from Montabert, France, enabling it to feature automatic impact pressure adjustment, and anti-jamming function. This ensures smooth and accurate hole drilling during the operation.
  • It adopts auto-stop device and bottom hole debris clearing function, automatically stopping pushing and impacting after finishing the drilling process. The handle control can be used to blow out residue and water at the bottom of the hole, eliminating the need of manual cleaning and reducing operation cycle time.
  • The drilling equipment uses Kaishan brand energy-saving integrated direct-connected screw air compressor, offering smooth operation, easy maintenance, significantly saved energy and reduced pollution.
