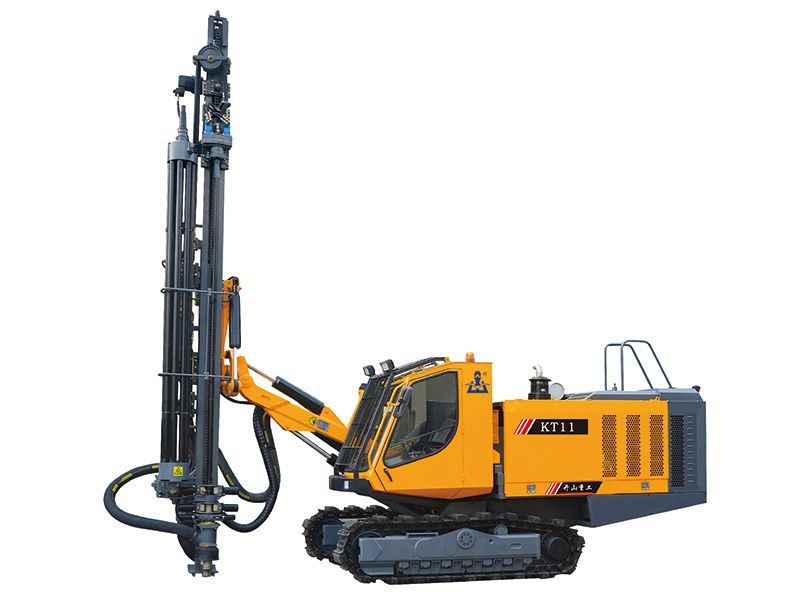

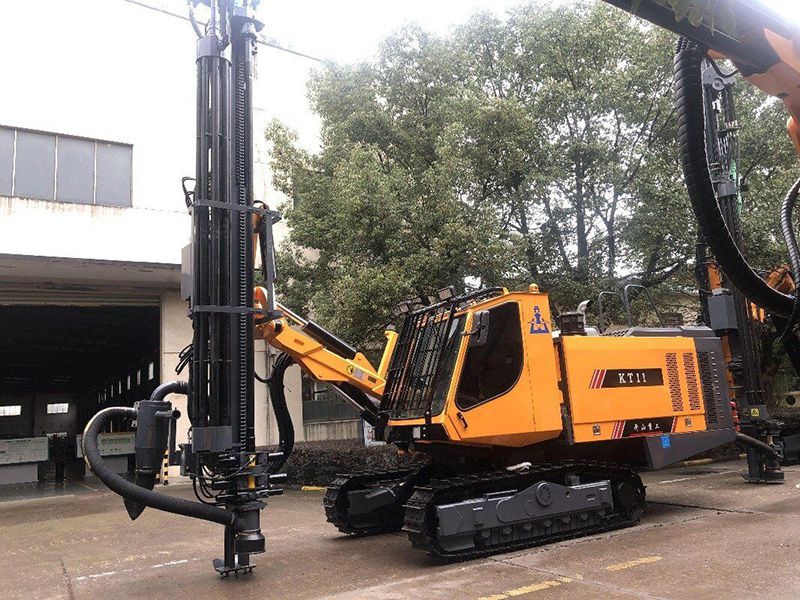

Integrated Surface DTH Drilling Rig, KT11

Down-the-hole drill rig for open-pit mining

Integrated Surface DTH Drilling Rig, KT11
Integrated Surface DTH Drilling Rig, KT11 Integrated Surface DTH Drilling Rig, KT11 Integrated Surface DTH Drilling Rig, KT11 Integrated Surface DTH Drilling Rig, KT11

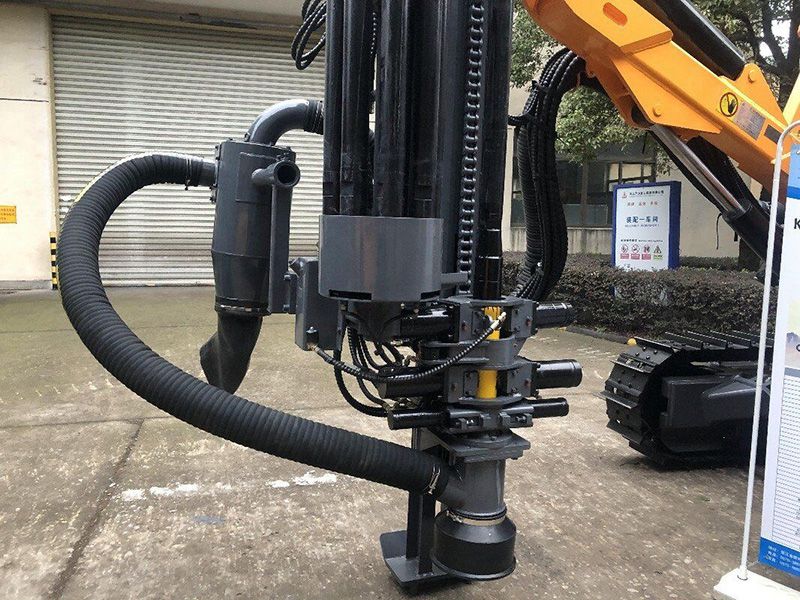

This machine is sure to be the next generation of drilling rig that can increase productivity to the maxium. It powers the compressor and hydraulic transmission system through a two-terminal engine. The machine is able to drill holes ranging from 100-140 mm in different angles, be it a vertical one or an inclined one, which is suitable for drilling blastholes and pre-splitting holes in open-pit mines and stonework sites. With a hands-free rod handling system and a lubrication module, the machine can be operated by a single person. All functions and moves of the rig can be easily achieved through a console in the cab. The machine can drill holes in a better way with its interior anti-jamming system and an angle and depth indicator. It is also equipped with an advanced dust collector, a big cab, a powerful air-conditioner and a quality speaker, providing a cozy working evniornment for operators.

Request a Quote
Technical Specifications
Model KT11
Dimensions 9100×2520 ×3600mm
Total weight 15500kg
Rock hardness F=6-20
Hole diameter ⌀100-140mm
Ground clearance 420mm
Track oscillation angle ±10°
Tramming speed 0-4km/h
Gradeability 25°
Traction  120kN
Maxium torque 2.8kN.m
Rotation speed 0-120r/min
Boom lift angle Up: 47°, down: 20°
Boom swing angle Left: 21°, right: 50°
Swing angle Left: 35°, right: 95°
Tilt angle 114°
Feed extension 1353mm
Feed length 4490mm
Maximum feed force  25kN
Feed method  Roller chain
Drilling depth  32m
Rod number 7+1
Rod diameter ⌀76×4000mm
DTH hammer K40
Engine Cummins QSL8.9-C325-30
Total power 242kW/2200rpm
Screw air compressor Zhejiang Kaishan
Free air delivery of compressor 18m³/min
Discharge pressure of compressor 112 psi
Tramming controller Hydraulic pilot
Drilling controller Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-jamming
Voltage 24V DC
Cab safety Meet the requirements of ROPS&FOPS
Cab noise level < 85dB(A)
Seat                Adjustable
Air-conditioning Cooling/heating
Entertainment Radio+MP3
Details

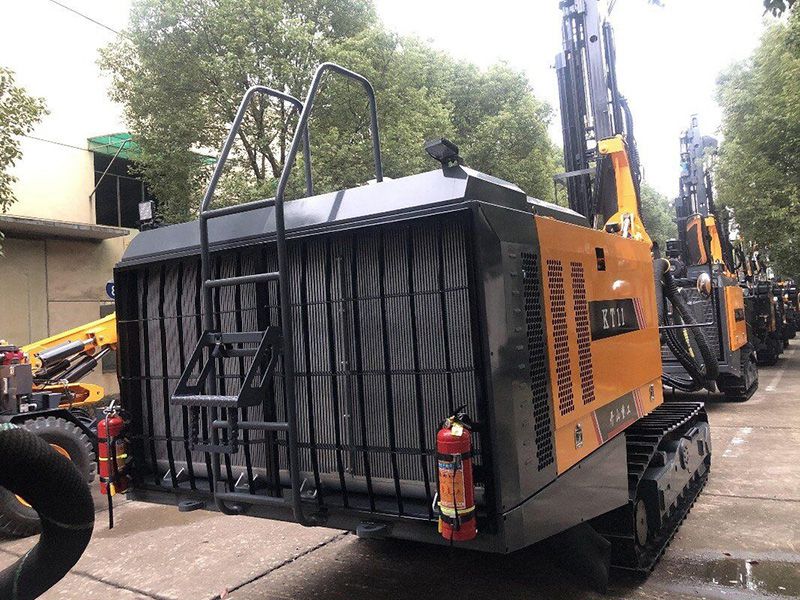

  • Integrated Surface DTH Drilling Rig, KT11
  • Integrated Surface DTH Drilling Rig, KT11
  • Integrated Surface DTH Drilling Rig, KT11
  • Integrated Surface DTH Drilling Rig, KT11
