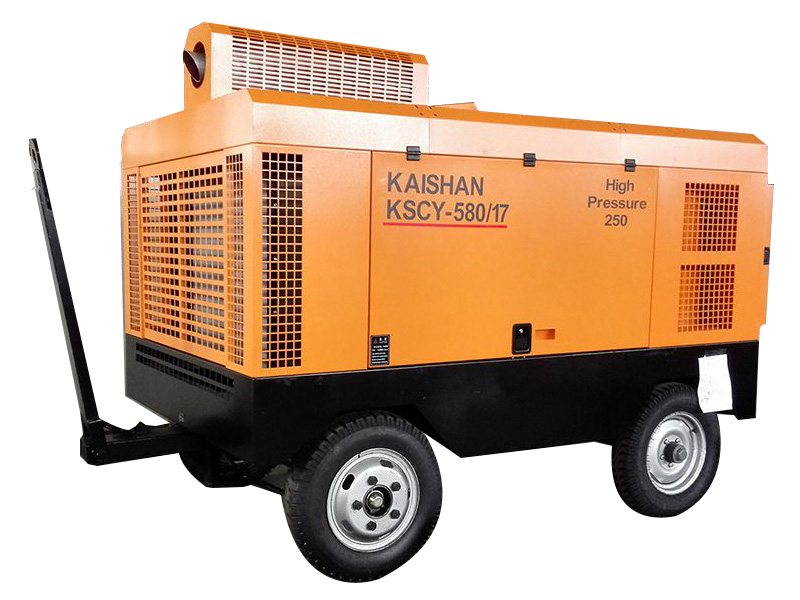

Diesel Portable Screw Air Compressor, KSCY

Diesel Portable Screw Air Compressor, KSCY
  • Working pressure: 8(116) - 20(300) Bar (Psi)
  • Free air delivery: 6(220) - 21(750) m³/min (cfm)
  • Power: 55 (75) - 240(310) kW (HP)

KAISHAN is a reputable manufacturer of screw air compressors in the domestic market. Our KSCY series portable screw air compressors are particularly praised by customers worldwide. Please contact us if you have any questions about our screw air compressors.

Technical Specifications
Model KSCY-220/8 KSCY-330/8 KSCY-425/10 KSCY-400/14.5 KSCY-550/13 KSCY-550/14.5 KSCY-580/17 KSCY570/12-550/15 KSCY-560/15 KSCY-750/20
Air Compressor
Free air delivery m³/min(cfm) 6(220) 9(330) 12(425) 11(400) 15(550) 15(550) 17(580) 16(570) 15(560) 21(750)
Discharge pressure Bar (Psi) 8(116) 8(116) 10(145) 14.5(212) 13(190) 14.5(210) 17(250) 12(174) 15(218) 20(300)
Fuel tank capacity L 30 30 40
Compression stage 1
Diesel Engine
Manufacturer Xichai Yuchai Yuchai Yuchai/Cummins Yuchai Yuchai/Cummins Yuchai /Cummins Yuchai/Cummins Yuchai Yuchai
Model 75HP(55) 120HP 160HP 160HP 180HP 180HP 6CTA8.3-C260 180HP 220HP 310HP
Rotating speed under full load r/min 2100 2100 2100 2100 2500 2200 2200 2200 3000 2200
Unloaded rotating speed r/min 1400 1400 1400 1400 1400 1500 1500 1500 1500 1500
Rated power HP(kW) 75HP(55) 110(150) 160(118) 160(118) 180(132) 180(132) 260(194) 180(132) 220(162) 310(240)
Capacity L 6.8 6.8 6.8 6.8 5.9 8.3 8.3 8.3 8.3 8.3
Fuel tank capacity L 130 130 130 130 195 300 300 300 300 300
Electric system voltage V 24 24 24 24 24 24 24 24 24 24
Entire Air Compressor
Sound ±3dB(A) 80 80 82 82 82 82 82 82
Weight kg 2200 2200 2400 3200 3200 3200 3200 3200
Length mm 3000 3650 3000 3600 3600 3600 3600 3600
Width mm 1880 1880 1520 1800 1800 1800 1800 1800
Height mm 2060 2060 2200 2450 2450 2450 2450 2450
Outlet valve G11/2×1,G3/4×1 G2×1, G3/4×1
Get in Touch
Our Products
  • Underground Drill Rigs
    1. Face Drill Rigs (Jumbos)
      KJ311 KJ311-4 (Diesel Power Type) KJ311 (Plateau Type) KJ311 (Computer-assisted Drilling Type) KJ311 (Telescopic Feed Beam Type) KJ311 (Increased Height Type) KJ211 KJ212 K215 KJ310 KJ321 KJ421 KJ422
    2. Hydraulic Rock Bolting Rigs
      KM211 KM311
    3. Hydraulic Longhole Drilling Rigs
      KS311 KSJ21
    4. Hydraulic Scaling Rigs
    5. In-The-Hole Longhole Drilling Rigs
  • Surface Drill Rigs
    1. Rotary Blasthole Drilling Rigs
      KG310/KG310H KG320/KG320H KG410/KG410H KG420/KG420H KG420S/KG420SH KG430/KG430H KG430S/KG430SH KG510/KG510H KG520/KG520H KG590/KG590H KG610/KG610H KG690/KG690H KG726Ⅲ/KG726ⅢH KG920BⅢ/KG920BHⅢ KGH3AⅢ
    2. Integrated Surface DTH Drilling Rigs
      KT5C KT5D KT5J KT7C KT7D KT9C KT9D KT11 KT12 KT15 KT15C KT20 KT20S KT25 ZT5 ZT10
    3. Surface Top Hammer Drill Rigs
      KL510 KL511
  • Well Drilling Rigs
    1. Well Drilling Rig, JR200
    2. Well Drilling Rig, JR260
    3. Well Drilling Rig, JR300 (with 4.5m Composite Frame)
    4. Well Drilling Rig, JR300 (with 6.6m Composite Frame)
    5. Well Drilling Rig, JR350S
    6. Well Drilling Rig, JR380S
    7. Well Drilling Rig, JR400
    8. Well Drilling Rig, JR480
    9. Well Drilling Rig, JR500
    10. Well Drilling Rig, JR600
  • Air Compressor
    1. Screw Air Compressor
      KSCY KSZJ LGZJ
    2. Piston Air Compressor
      Diesel Driven Piston Compressor Electric Piston Compressor
Related Products

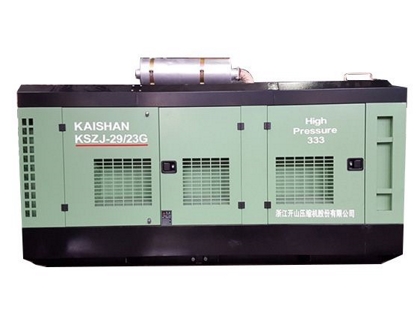

Diesel Portable Screw Air Compressor, KSZJ
+
Diesel Portable Screw Air Compressor, KSZJ
  • Working pressure: 1.5(210)-3(435) Mpa (Psi)
  • Free air delivery: 15(530)-37(1332) m³/min(CFM)
  • Power: 192(180)-404(550)kW (HP)

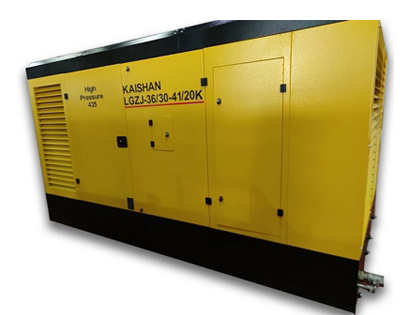

Diesel Screw Air Compressor, LGZJ
+
Diesel Screw Air Compressor, LGZJ
  • Model: LGZJ-36/30-41/20K
  • Free air delivery (m³/min): 36-41
  • Working pressure (Mpa): 3.0-2.0
  • Weight (kg): 5800

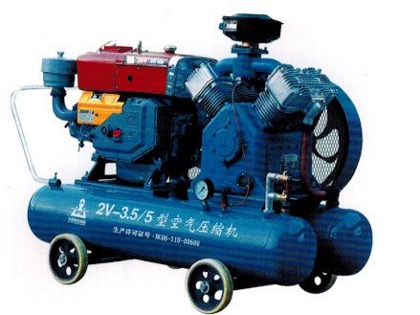

Diesel Driven Piston Compressor
+
Diesel Driven Piston Compressor
  • Model: 2V-3.5/5
  • Free air delivery (m³/min): 3.5
  • Cylinder (diameter ×quantity): 115mm×4
  • Diesel engine/motor (kW/HP): S1125 diesel engine, 25HP

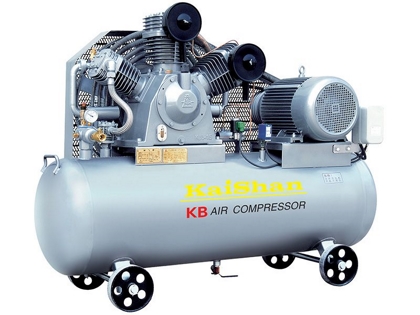

Electric Piston Compressor
+
