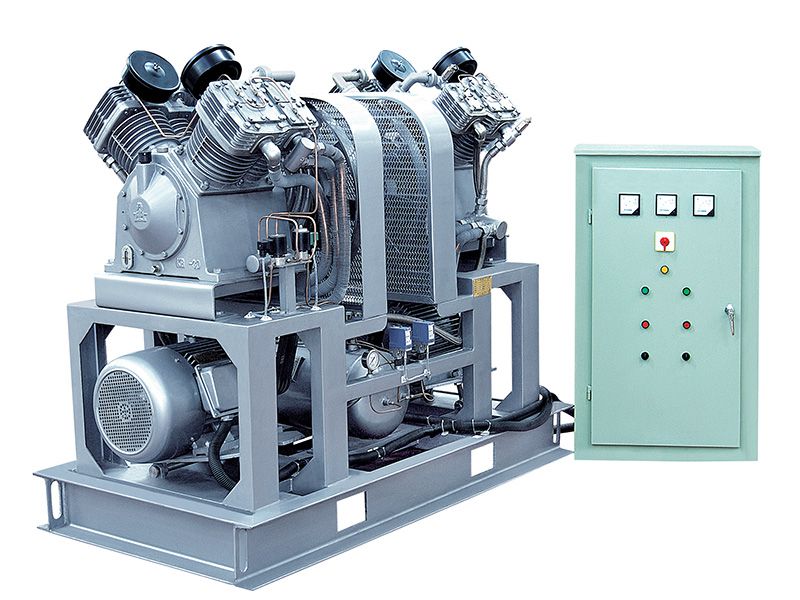

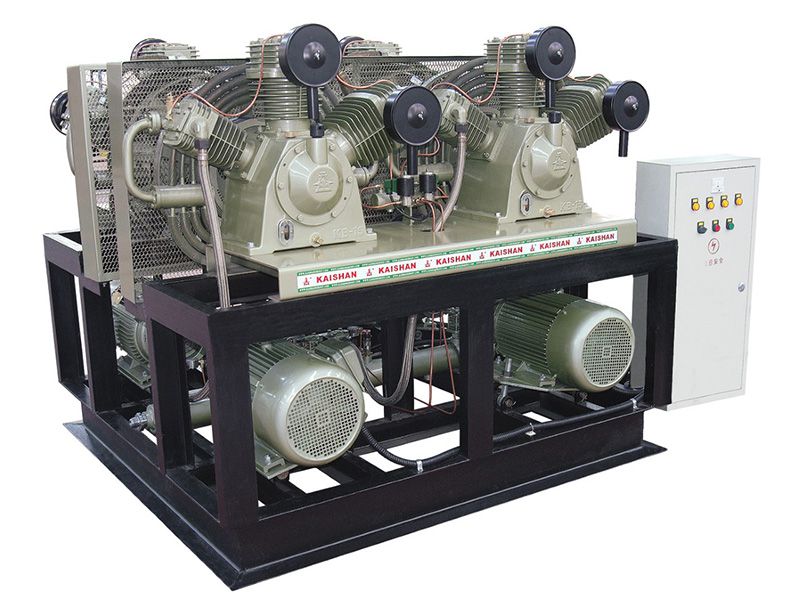

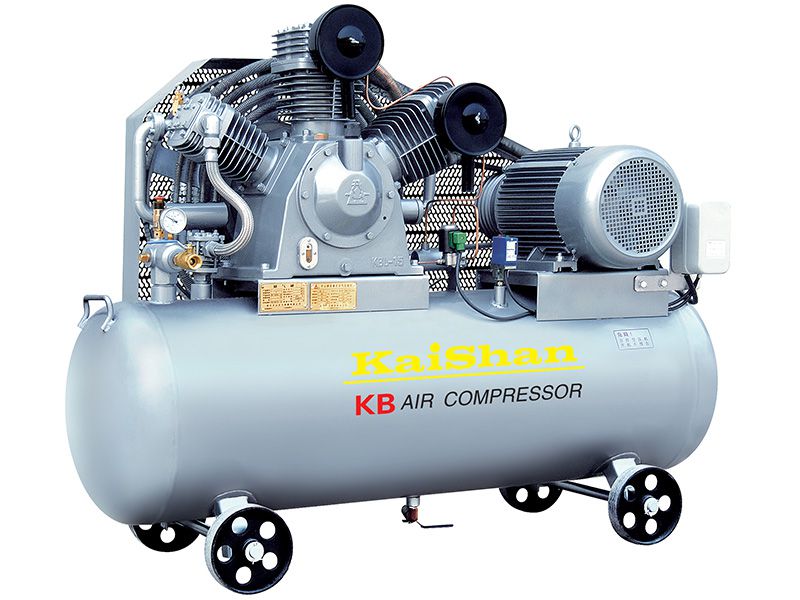

Electric Piston Compressor

Medium pressure industrial air compressor

Electric Piston Compressor
Electric Piston Compressor
Electric Piston Compressor
Features
  • Exclusive oil separation structure at front cover leads to low oil consumption and the body cleanliness, and prevents oil venting from breather valve;
  • The rational design of flaring angle on copper pipe, along with protecting jacket, efficiently prevents cracking and air leaking;
  • Key components including pressure switch, contactor and thermal relay are all imported from world's well-known brands (such as Schneider) to ensure the reliable performance of control and protection;
  • Four options of air flow control are available to adapt to user's needs, i.e. automatic electric control, automatic pneumatic control, electric and pneumatic control (manual switching) and intelligent control;
  • High efficiency intercooler is specially developed to accommodate the relatively high compression ratio of the medium pressure air compressor, ensuring that the air exhaust temperature is kept at an appropriate level;
Technical Specifications
Model Motor power HP/kW Cylinder (diameter ×quantity) Free air delivery (m³/min) Working Pressure (Mpa) Air tank (m²) Dimension (L×W×H) Weight (kg)
KBH-45 40/30 LP 155mm×2 MP 120mm×1 HP 70mm×1 2.0 4.0(40) 0.45 1850×850×1500 860
KB-45 40/30 LP 155mm×2 MP120mm×1 HP 70mm×1 2.2 3.0(30) 0.45 1850×850×1500 860
KBH-35 30/22 LP 155mm×2 MP120mm×1 HP 70mm×1 1.6 4.0(40) 0.35 1850×850×1400 800
KB-35 30/22 LP 155mm×2 HP 80mm×1 1.7 3.0(30) 0.3 1635×700×1350 800
KBH-15 20/15 LP 120mm×2 MP100mm×1 HP 55mm×1 1.2 4.0(40) 0.23 1600×650×1200 650
KB-15 20/15 LP 120mm×2 HP 65mm×1 1.2 3.0(30) 0.18 1368×560×1050 600
KBL-15 20/15 LP 120mm×2 HP 80mm×1 1.3 2.5(25) 0.18 1425×560×1011 600
KB-10 15/11 LP 100mm×2 HP 55mm×1 0.7 3.0(30) 0.13 1310×500×960 550
KBL-10 15/11 LP 100mm×2 HP 65mm×1 0.75 2.5(25) 0.13 1850×850×1500 550
