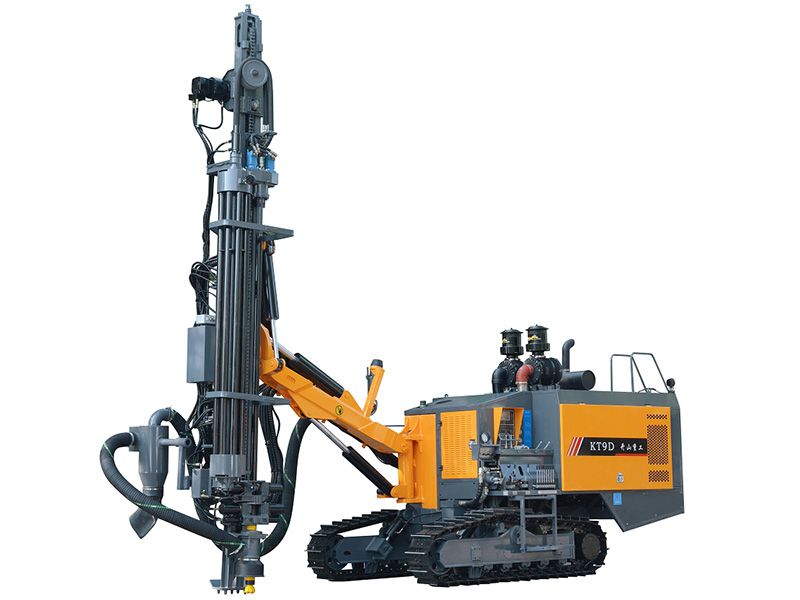

Integrated Surface DTH Drilling Rig, KT9D

Down-the-hole drill rig for open-pit mining

Integrated Surface DTH Drilling Rig, KT9D

This machine is made with drilling rig that works in a high-efficiency and energy-saving way, which is, no doubt, a good choice for owners’ of small and medium-sized open-pit mines, quarries and infrastructure construction sites. The machine’s screw air compressor and hydraulic pump are driven by an engine with a two-terminal output, which enables the machine to drill rocks efficiently. The engine is a cut-end product from Cummins which meets China Stage III emission standards. The rig is equipped with an oscillator that brings a larger pitch and guarantees excellent stability in different terrain. The mining machine is also equipped with a durable sebific duct and an advanced dust collector that is aimed to reduce dust pollutants. All components are in a clear layout, allowing for an easy upkeep or repair.

Request a Quote
Technical Specifications
Model KT9D
Rock hardness F=6-20
Hole diameter ⌀90-130mm
Hole diameter 24m
Rod numbers 7+1
Tramming speed 2.5/4.0km/h
Gradeability 25°
Ground clearance 430mm
Total power 194kW/205kW
Diesel engine Cummins QSC8.3-C260-30 Yuchai YCA08280-T300
Free air delivery of compressor 17m³/min
Discharge pressure of compressor 238 psi
Dimensions 7800 ×3000 ×3300/3600mm
Total weight 12500kg
Rotation speed 0-120r/min
Maxium torque 2.8kN.m
Maximum push force 25kN
Boom lift angle Up: 57°, down: 20°
Tilt angle 114°
Swing angle Left: 35°, right: 95°
Boom swing angle Right: 20°, left: 50°
Frame oscillation angle ±10°
Feed length 3490mm
Feed extension 900mm
DTH hammer K40
Rod diameter ⌀76×3000mm
Dust collector Dry (hydraulic cyclonic laminar flow)
