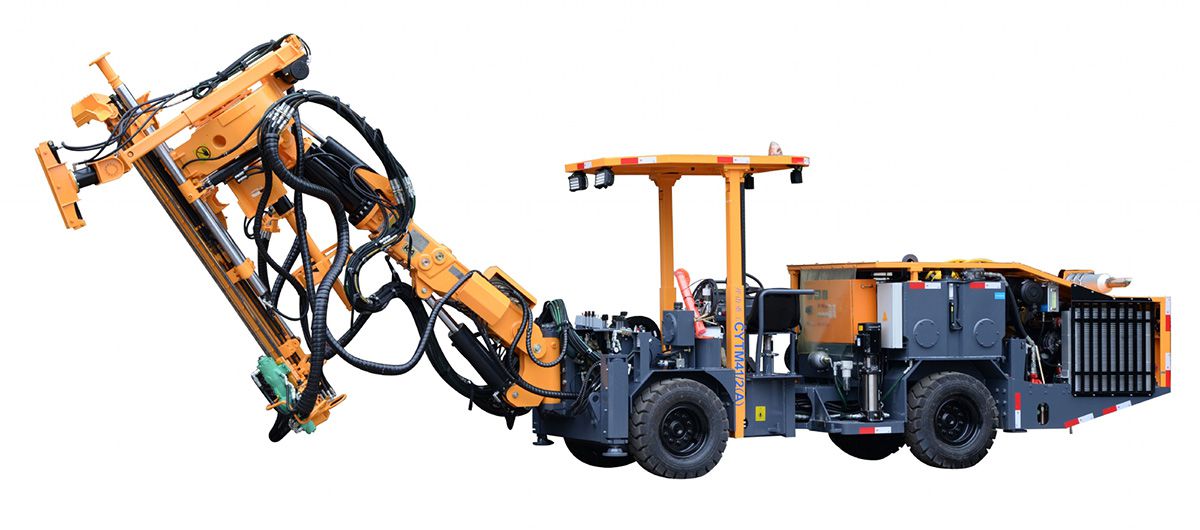

Hydraulic Rock Bolting Rig, KM211

Hydraulic Rock Bolting Rig, KM211
  • Dimensions (L×W×H): 10700×2000×1500/2000mm
  • Weight: 12000kg
  • Gradeability: 14°

KM211 hydraulic rock bolting rig is specially designed for handling different bolt types such as friction bolts and resin bolts in underground mines and tunnels at low heights. The rock bolting rig can pass through tunnels with cross section of 2m in width and 2.5 in height, and rock bolting operation can be implemented in tunnels with cross section at width greater than 2.5m and height greater than 2m.

Request a Quote

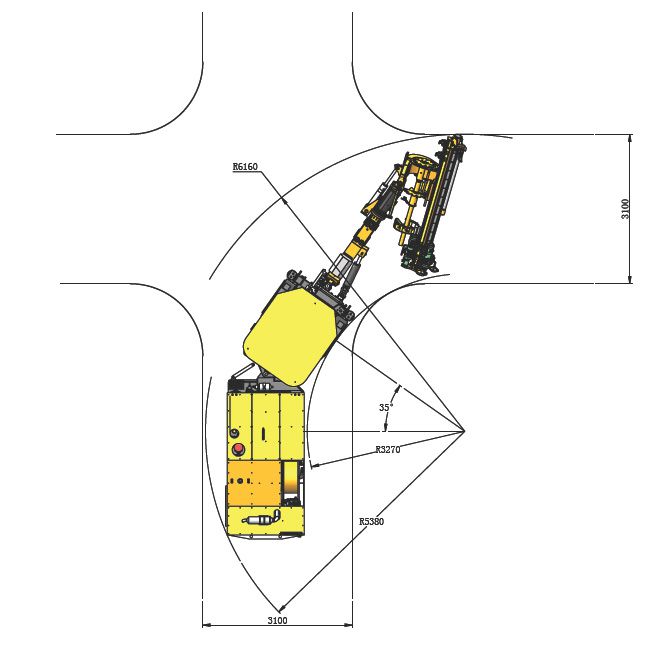

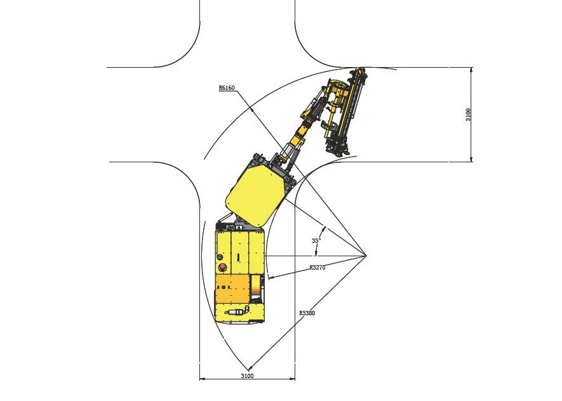

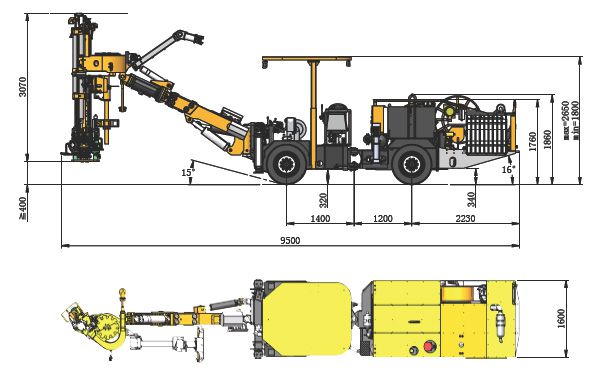

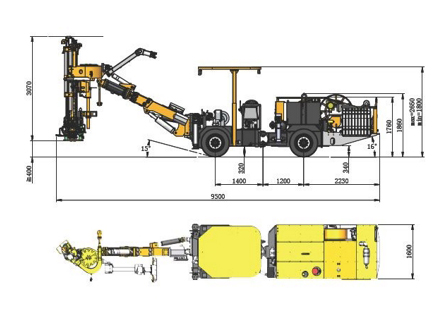

Structure Diagram
Structure Diagram
Structure Diagram
Technical Specifications
Dimensions and Weight
Length 10700mm
Width 2000mm
Height 1500/2000 mm
Weight 12000 kg
Travelling speed, level 10 km/h
Gradeability 14°
Safe protection
Noise level < 100 dB(A)
Lifting safety roof Meet the requirements of FOPS and ROPS.
Drilling system
Drilling Bolt
Rock drill (drifter) 1×HC25/R32 1×HC25/R32
Impact power 8kW 8kW
Impact flow 65L/min 65L/min
Impact pressure 150bar 150bar
Max. rotary pressure 175bar -
Impact frequency 55-65hz 55-65hz
Torque 325Nm -
Hole diameter 32-51mm -
Beam rotation 360°
Feed extension 480mm
Height of tunnel Bolt rod leght+1500mm
Model of boom K26F
Form of boom Automatic leveling
Extension of drill boom 1200mm
Electric hydraulic pump unit
Electric motor 45kW
Impact/Feed/Positioning Variable axial piston pump
Turn around Gear pumps
Filter precision 10μ
Hydraulic oil tank 240L
Hydraulic cooler Water cooler
Working pressure 380V
Frequency 50Hz
Starting method Star/delta
Cable reel 1×K440
Cable capacity of reel 100m
Diameter of cable 28mm
Cable specifications 3×25+3G6
Air and water system
Air compressor 1×JN5
Capacity 0.5m3/min
Pressure 6-8bar
Shank lubrication device Electrical pulse lubrication pump
Air consumption for lubrication 0.3m3/min
Oil consumption for lubrication 180-250g/h
Water pump 1×CR3
Power 1.5kW
Pump capacity 3m3/h
Chassis
Diesel engine Cummins QSB3.9-C80-31 60kW/2200rpm
Exhaust purification Exhaust catalyzer
Drive system Four-wheel drive
Travel brake Hydraulic brake
Parking brake Wet multidisc brake
Fuel tank 60L
Features
  • The hydraulic rock bolting rig has one drill boom with multi-station feed beam, and is configured with bolt magazine and meshing module, it is suitable for multiple bolting operations such as tubular friction and resin rock bolting; A complete range of functions including hole drilling, meshing, bonding agent feeding and bolt installation can be implemented through the operator control panel;
  • The medium/low pressure hydraulic drifters from Montabert are used in the rock bolting rig. Hydraulic hoses and seals do not operate in high pressure conditions since the hydraulic drifter works under low oil pressure, thus resulting in prolonged service life, high reliability and less maintenance cost when compared to high pressure hydraulic drifter;
  • Stepped piston is used in rock drill (drifter), which helps increase drilling speed, improve the efficiency of impact energy transfer from drill to rock, and reduce the consumption of drilling tools while maintaining the condition of the drill rig;
  • Low-emission Cummins diesel engine paired with hydraulic four-wheel-drive transmission system is included in the hydraulic rock bolting rig, achieving stepless speed adjustment, high gradeability and fast walking speed;
  • The exhaust purification device is equipped to greatly improve the underground working environment;
  • Wet multi-disc service brake and spring-applied hydraulically released parking brake provide safe braking and high stability; In addition, emergency stop buttons at multiple points significantly enhance the safety during underground mining and tunneling operations;
  • The spacious operating environment, lifting protective roof and considerably designed automatic functions of the rock bolting rig allow the operator to focus on drilling safely, quickly and accurately;
  • Optimal layout of the drilling rig enables operator has a good visibility, and all parts at service points are securely protected, and accessible for easy maintenance;
  • KM211 hydraulic rock bolting rig is equipped with the original power control valve block from Montabert, France, enabling it to feature automatic impact pressure adjustment, and anti-jamming function. This ensures smooth and accurate hole drilling during the operation.
  • The hydraulic rock bolting rig uses Kaishan brand energy-saving integrated direct-connected screw air compressor, offering smooth operation, easy maintenance, significantly saved energy and reduced pollution. This makes a great contribution to improving the working environment, and protecting human health.
  • The mining articulated chassis is equipped with wheel-side motors, with an articulated steering angle of ±35° and a rear axle swing angle of ±6°.
Get in Touch
Our Products
  • Underground Drill Rigs
    1. Face Drill Rigs (Jumbos)
      KJ311 KJ311-4 (Diesel Power Type) KJ311 (Plateau Type) KJ311 (Computer-assisted Drilling Type) KJ311 (Telescopic Feed Beam Type) KJ311 (Increased Height Type) KJ211 KJ212 K215 KJ310 KJ321 KJ421 KJ422
    2. Hydraulic Rock Bolting Rigs
      KM211 KM311
    3. Hydraulic Longhole Drilling Rigs
      KS311 KSJ21
    4. Hydraulic Scaling Rigs
    5. In-The-Hole Longhole Drilling Rigs
  • Surface Drill Rigs
    1. Rotary Blasthole Drilling Rigs
      KG310/KG310H KG320/KG320H KG410/KG410H KG420/KG420H KG420S/KG420SH KG430/KG430H KG430S/KG430SH KG510/KG510H KG520/KG520H KG590/KG590H KG610/KG610H KG690/KG690H KG726Ⅲ/KG726ⅢH KG920BⅢ/KG920BHⅢ KGH3AⅢ
    2. Integrated Surface DTH Drilling Rigs
      KT5C KT5D KT5J KT7C KT7D KT9C KT9D KT11 KT12 KT15 KT15C KT20 KT20S KT25 ZT5 ZT10
    3. Surface Top Hammer Drill Rigs
      KL510 KL511
  • Well Drilling Rigs
    1. Well Drilling Rig, JR200
    2. Well Drilling Rig, JR260
    3. Well Drilling Rig, JR300 (with 4.5m Composite Frame)
    4. Well Drilling Rig, JR300 (with 6.6m Composite Frame)
    5. Well Drilling Rig, JR350S
    6. Well Drilling Rig, JR380S
    7. Well Drilling Rig, JR400
    8. Well Drilling Rig, JR480
    9. Well Drilling Rig, JR500
    10. Well Drilling Rig, JR600
  • Air Compressor
    1. Screw Air Compressor
      KSCY KSZJ LGZJ
    2. Piston Air Compressor
      Diesel Driven Piston Compressor Electric Piston Compressor
Related Products

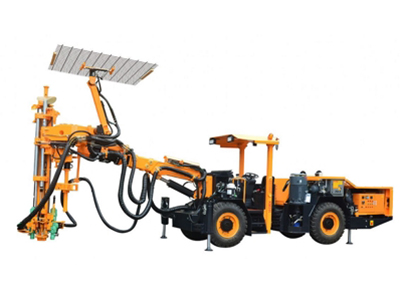

Hydraulic Rock Bolting Rig, KM311
+
Hydraulic Rock Bolting Rig, KM311

The rock bolting rig can travel through tunnels with a 2.5m wide and 2.2m high cross section, and the rock bolting operations can be carried out in tunnels with a cross section of more than 3m in width and more than 3m in height.

In-The-Hole Longhole Drilling Rigs, KSQ31
+
In-The-Hole Longhole Drilling Rigs, KSQ31
  • Dimensions (L×W×H): 5525×2375×2975mm
  • Weight: 10000 kg
  • Gradeability: 20°

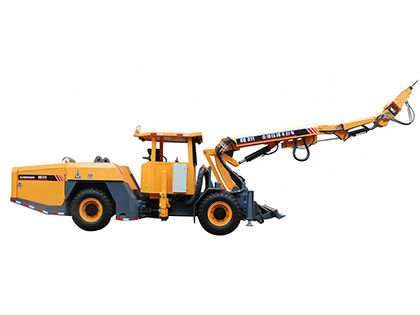

Hydraulic Scaling Rig, KQ311
+
Hydraulic Scaling Rig, KQ311
  • Dimensions (L×W×H): 8800×1750×2650mm
  • Weight: 12000kg
  • Maximum climbing: 25%(14°)

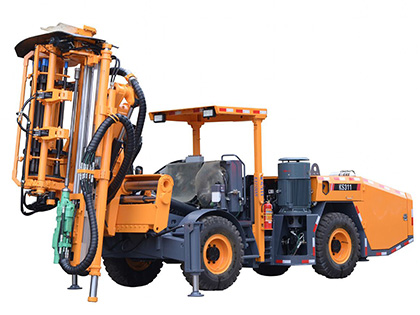

Hydraulic Longhole Drilling Rig, KS311
+
Hydraulic Longhole Drilling Rig, KS311

KS311 hydraulic longhole drilling rig is mainly used for long hole drilling and bolting tasks, and it is suitable for underground mines and tunnels with a height range of 3.5m-5m and a width range of 3.5m-5m.

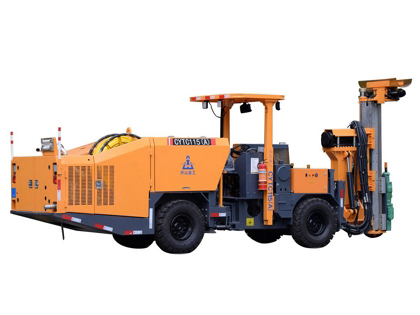

Hydraulic Longhole Drilling Rig, KSJ21
+
Hydraulic Longhole Drilling Rig, KSJ21

KSJ21 hydraulic longhole drilling rig is primarily intended for long hole drilling and bolting operations, and it is suitable for underground mines and tunnels with a height range of 2.9m-5.2m and a width range of 2.8m-4.5m.

Hydraulic Rock Bolting Rig, KM211
+
Hydraulic Rock Bolting Rig, KM211

The rock bolting rig can pass through tunnels with cross section of 2m in width and 2.5 in height, and rock bolting operation can be implemented in tunnels with cross section at width greater than 2.5m and height greater than 2m.

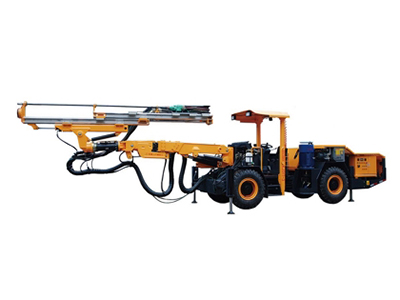

Hydraulic Tunneling Drilling Rig, KJ311
+
Hydraulic Tunneling Drilling Rig, KJ311

This hydraulic tunneling drilling rig is a kind of plateau type drilling rigs especially used for drilling at high altitude. This drilling rig is suitable for drilling hard rock mines with cross sections of 12-35m².

Hydraulic Tunneling Drilling Rig, KJ311
+
Hydraulic Tunneling Drilling Rig, KJ311

This hydraulic tunneling drilling rig is computer-assisted intelligent tunneling equipment suitable for blast hole drilling in hard rock mining and tunneling with cross sections of 12-35 m².

Hydraulic Tunneling Drilling Rig, KJ311
+
Hydraulic Tunneling Drilling Rig, KJ311

This hydraulic tunneling drilling rig features a telescopic feed beam, it is suitable for drilling hard rock mines with cross sections of 12-35m². The drilling rig can also realize rock bolting, it is able to drill bolt holes of 2.2m in depth at 4m high tunnels.

Hydraulic Tunneling Drilling Rig, KJ311
+
Hydraulic Tunneling Drilling Rig, KJ311

This hydraulic tunneling drilling rig is a face drilling rig designed with increased working height, suitable for large hard rock mines and tunnels with cross sections of 12-44m². The drilling rig can reach a height of 7.4m from floor level, and a width of up to 7.6m.

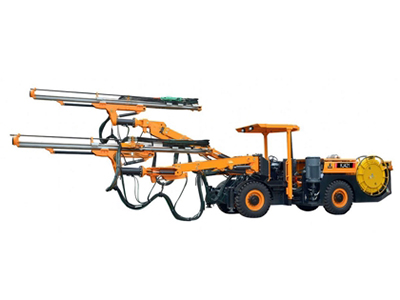

Hydraulic Tunneling Drilling Rig, KJ321
+
