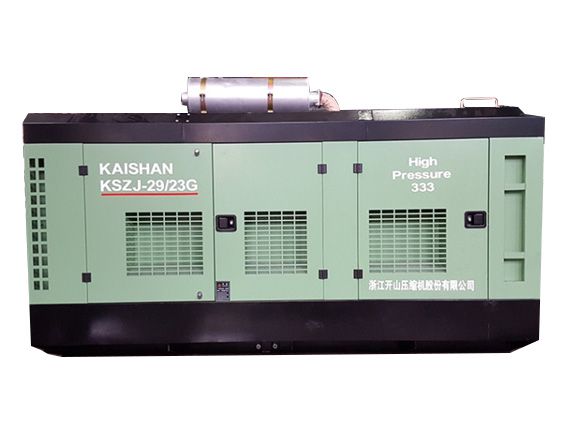

Diesel Portable Screw Air Compressor, KSZJ

Diesel Portable Screw Air Compressor, KSZJ
  • Working pressure: 1.5(210)-3(435) Mpa (Psi)
  • Free air delivery: 15(530)-37(1332) m³/min(CFM)
  • Power: 192(180)-404(550)kW (HP)

KAISHAN is a reputable manufacturer of screw air compressors in the domestic market. Our KSCY series portable screw air compressors are particularly praised by customers worldwide. Our KSZJ series portable screw air compressors are particularly praised by customers worldwide. Please contact us if you have any questions about our screw air compressors.

Technical Specifications
Model Free air delivery Working pressure Diesel engine Weight Size Remark
m³/min cfm Mpa Psi Kgs (L×W×H) mm
KSZJ-15/14.5 15 530 1.5 210 Cummins 6CTA8.3-C260,192kW/180HP 2500 3000×1520×1800 Stationary
KSZJ-18/17 18 636 1.7 247 YuChai YC6M260L-K20,192kW/260HP 3200 3000×1800×2000 Stationary
KSZJ-18/17A 18 636 1.7 247 YuChai YC6M162,162kW/220HP 3200 3000×1800×2000 Stationary
KSZJ-29/23 29 1024 2.3 334 YuChai YC6M395L-K20,290kW/395HP 4800 3500×1950×2030 Stationary
KSZJ-29/23-32/17 29 1024 2.3 334 YuChai YC6M395L-K20,290kW/395HP 4800 3500×1950×2030 Stationary
KSZJ-31/25-34/17 31 1095 2.5 363 YuChai YC6K500L,404kW/550HP 4800 3500×2100×2200 Stationary
LGZJ-31/25-35/18 31 1095 2.5 363 YuChai 294kW/400HP 4800 3500×2100×2200 Stationary
LGZJ-37/25-41/17 37 1332 2.5 363 YuChai 411kW/560HP 6200 4250×2100×2500 Stationary
LGZJ-36/30-41/20 36 1296 3 435 YuChai 411kW/560HP 6200 4250×2100×2500 Stationary
LGZJ-36/30-41/20K 36 1296 3 435 Cummins 404kW/550HP 6600 4250×2100×2500 Stationary
