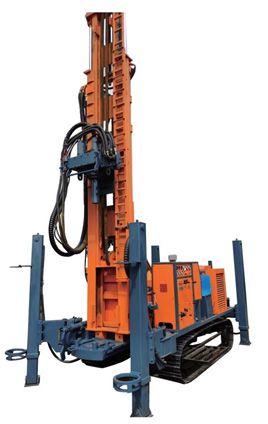

Well Drilling Rig, JR600

Well Drilling Rig, JR600 Well Drilling Rig, JR600

JR600 well drilling rig is a borehole drilling rig that is designed to carry out drilling operations for civil engineering, geothermal well drilling, water well drilling, and industrial construction drilling projects. The compact structure, quick penetration, good adaptability, and high work efficiency of this geothermal drilling rig make it adaptable for a variety of drilling tasks.

Technical Specifications
Drilling depth (m) 600
Drilling diameter (mm) ⌀110-300
Work pressure (mPa) 1.2-3.5
Air consumption (m3/min) 30-50
Drill rod length (mm) 3000-6000
Drill rod diameter (mm) ⌀89-114
Push pressure (t) 0-18
Lift force (t) 40
Support cylinder force (t) 50 (4 cylinders)
Support cylinder stroke (mm) 1700
Slide stroke (mm) 6600
Slow lift speed (m/min) 12
Slow push speed (m/min) 0-15
Fast lift speed (m/min) 39
Fast push speed (m/min) 60
Rotary motor output torque (N.m) 12000
Rotary motor output rotary speed (r/min) 50-160
Winch lifting force (t) 1.5
Diesel engine brand and model CUMMINS 210HP
Diesel engine power and rotary speed 154kW/2200rpm
Walking speed (km/h) 2.5
Climbing ability degree (°) 30
Weight (t) 11
Overall dimensions (m) 5.5×2.0×2.6
Quad hydraulic pump 80-80-40-25
Hydraulic foam pump 15L
Hydraulic electric generator (kW) 16
Hydraulic quick-connect valve and motor JR600
Drilling method Constant pressure hydraulic rotation and propulsion, DTH percussive drilling
Supporting hammer Medium to high air pressure series
Air compressor KAISHAN
Air volume (m³) 35
Pressure (MPa) 30
