Rotary Blasthole Drilling Rig, KG520/KG520H

Surface down-the-hole drill rig for open-pit mining

Rotary Blasthole Drilling Rig, KG520/KG520H

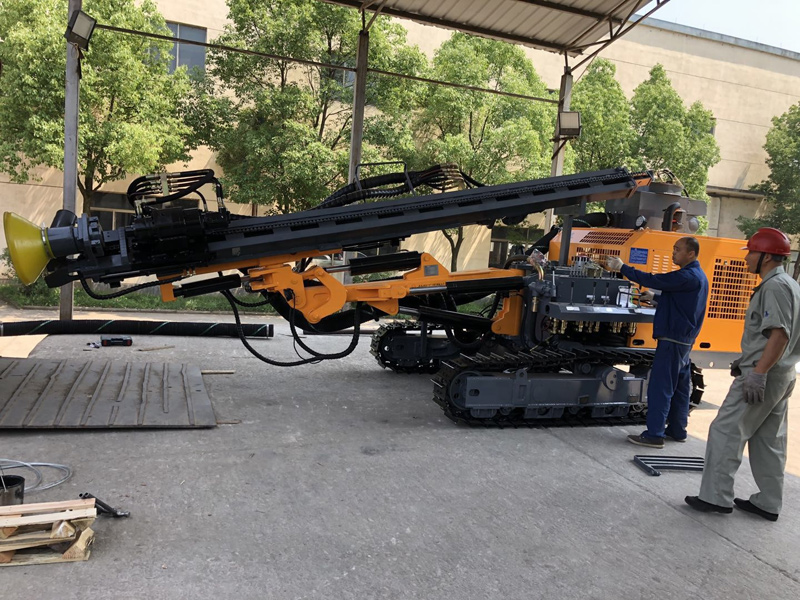

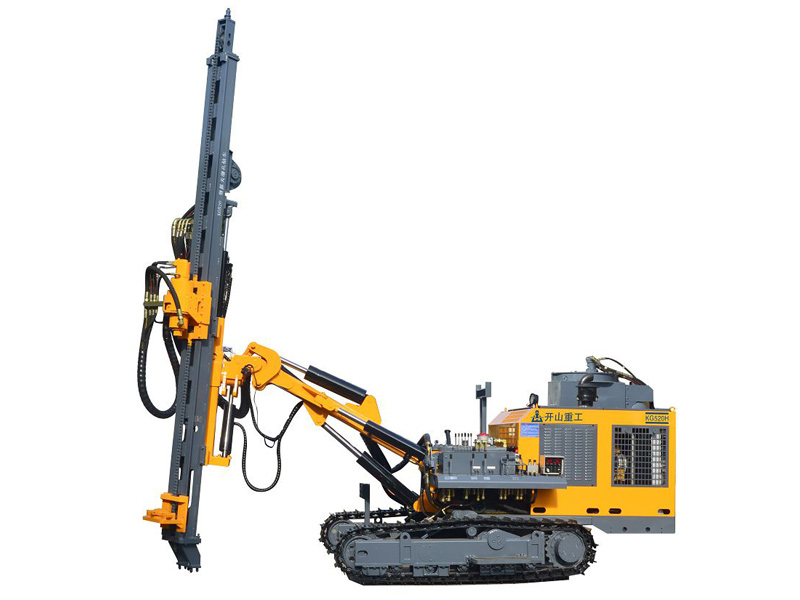

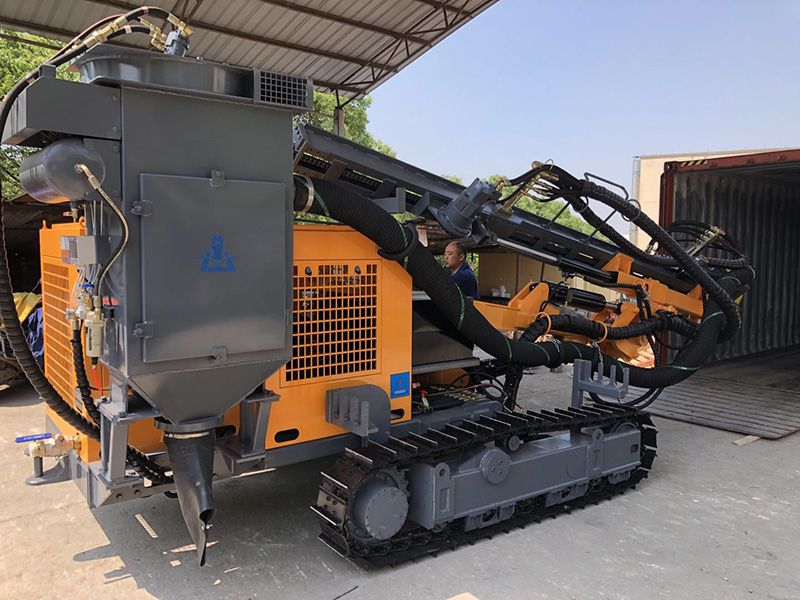

Rotary Blasthole Drilling Rig, KG520/KG520H Rotary Blasthole Drilling Rig, KG520/KG520H Rotary Blasthole Drilling Rig, KG520/KG520H

The rotary blasthole drilling rig is equipped with a 4-cylinder YUCHAI engine with low emission and less pollution. The construction machine features a piston motor and reinforced continuous track, both of which help the drill rig work better in ramp climbing. Owing to the wide swing and tilt angles, the extraction tool is suitable for various drilling applications. Characterized by two rotational motors that can boost feed and pull out force and reliable operation, this surface drill rig features reinforced materials strong enough for its transportation from site to site. Additionally, the rotary blasthole drilling rig is equipped with a dry dust collector that can help reduce pollutants to the air.

Request a Quote
Technical Specifications
Model KG520 KG520H
Total weight 6500kg 7000kg
Dimensions 6800×2200×2850mm 6800×2250×2850mm
Rock hardness F=6-20
Hole diameter Ø105-152mm
Hole depth 25m
RPM 0-110rpm
Maximum rotation torque 4000N.m(Max)
Pull out force 25kN
Feed type Motor+roller chain
Feed extension travel 4150mm
Tramming speed 0-4km/h
Gradeability ≤30°
Ground clearance 440mm
Tilt angle Down:135°, up:50°, total:185°
Swing angle Left:50°, right:50°, total:100°
Boom tilt angle Down:50°, up:25°, total:75°
Boom swing angle Left:45°, right:45°, total:90°
Oscillation angles ±10°
Boom extension 900mm
Engine type YC4DK100-T304(73kW/2200r/min)/Yuchai YC4DK100-T304(73kW/2200r/min)
DTH hammer K40
Drilling rod Ø76×3m, Ø89×3m/Ø76×3m, Ø89×3m
Flushing air 15-22m³/min
Maximum height of horizontal hole 3500mm
Minimum height of horizontal hole 350mm
Details
  • Rotary Blasthole Drilling Rig, KG520/KG520H
  • Rotary Blasthole Drilling Rig, KG520/KG520H
  • Rotary Blasthole Drilling Rig, KG520/KG520H
Recommended Air Compressors
  • Diesel engine portable screw air compressor
    Kaishan LGCY-18/17
    Kaishan LGCY-19.5/19
    Kaishan LGCY-22/20
Read More

Note: Air compressor selection depends on the hole diameter and air hose length.
