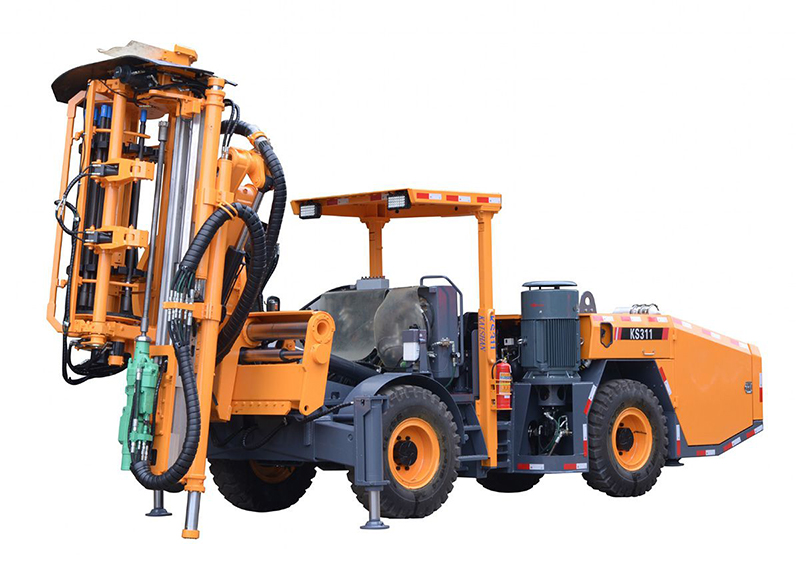

Hydraulic Longhole Drilling Rig, KS311

Hydraulic Longhole Drilling Rig, KS311
Request a Quote
  • Dimensions (L×W×H): 9700×2300×3300mm
  • Weight: 16000kg
  • Gradeability: 14°

KS311 hydraulic longhole drilling rig is mainly used for long hole drilling and bolting tasks, and it is suitable for underground mines and tunnels with a height range of 3.5m-5m and a width range of 3.5m-5m. This hydraulic longhole drilling rig is capable of 360-degree boom rotation, and configured with swing boom mechanism and guide rail to achieve full 360-degree hole drilling and horizontal coverage with parallel holding of 3 meters, it is versatile for a variety of mining applications.

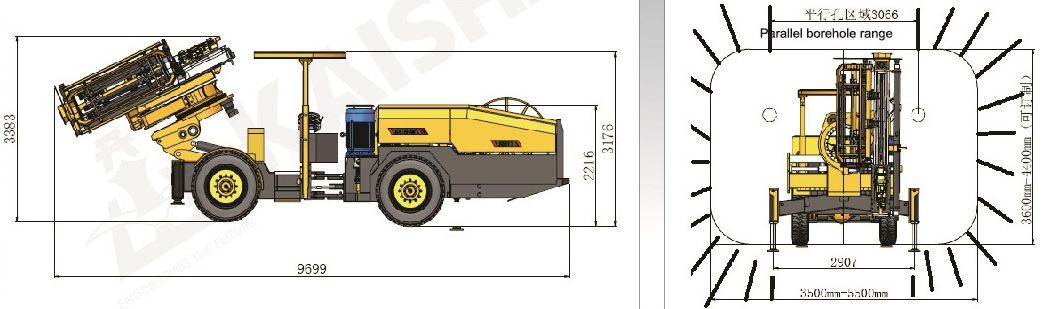

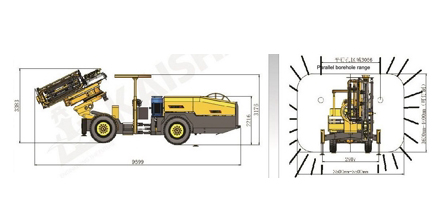

Structure Diagram

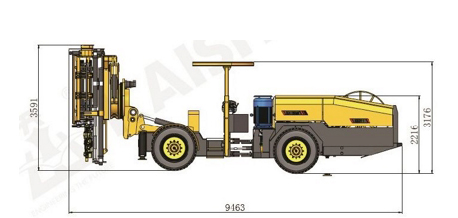

Structure Diagram

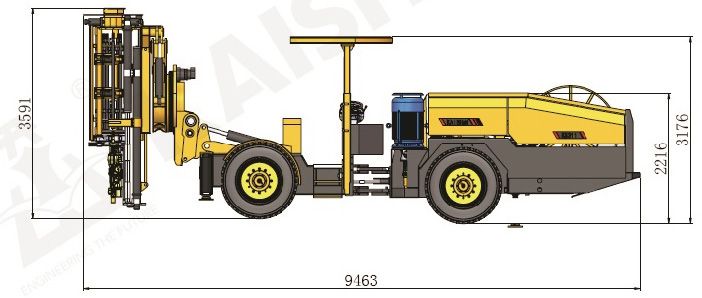

Structure Diagram
Technical Specifications
Dimensions and weight Drilling system
Length 9700mm Rock drill (drifter) 1×HC95LH
Width 2300mm Impact power 24kW
Height 3300 mm Impact flow 138L/min
Weight 16000 kg Impact pressure 200bar
Travelling speed, level 10 km/h Max. rotary pressure 210bar
Gradeability 14° Impact frequency 48-57hz
Electric Hydraulic pump unit Torque 955Nm
Electric motor 75kW Hole diameter 51-64mm 64-76mm 89-102mm
Impact/feed/positioning Variable axial piston pump Drill rod R32 T38 T45
Turn around Gear pumps Rod length 1220mm 1525mm 1830mm
Filter precision 10μ Boom length 3200mm 3500mm 3800
Hydraulic oil tank 240L Feed extension 900mm 1200mm 1200mm
Hydraulic cooler Water cooler Drilling depth 30m 36m 36m
Working pressure 380V Boom Down 20° hypsokinesis65°
Frequency 50Hz Beam rotation 360°
Starting method Star/delta Drill area ±1500mm
Cable reel 1×K440 Air and water system
Cable capacity of the reel 80m Air Compressor 1×JN4
Diameter of cable 32mm Capacity 0.5m3/min
Cable specifications 3×50+3G10 Pressure 5-7bar
Carrier Device of shank lubrication Four-wheel drive
Diesel engine Cummins QSB3.9-C125 93kW/2200rpm Air consumption for lubrication 0.3m3/min
Exhaust purification Exhaust catalyzer Oil consumption for lubrication 180-250g/h
Drive system Four-wheel drive Water Pump 1×CR10
Tires 12.00-20 Power 5.5kW
knuckle mechanic Articulated steering ±40° Pump Capacity 8m3/h
Travel brake Hydraulic brake Safe protection
Parking brake Wet multidisc brake Noise level < 100 dB(A)
Fuel tank 90L Lifting safety roof Meet the requirements of FOPS and ROPS
Features
  • The feed beam is supported by hydraulic cylinders to ensure the smooth drilling operation; The hydraulic guide cylinders are used to ensure that bores are drilled with near perfect straightness;
  • The articulated chassis with hydraulic drive system is suitable for small to medium-sized tunnels;
  • Stepped piston is used in rock drill (drifter), which helps increase drilling speed, improve the efficiency of impact energy transfer from drill to rock, and reduce the consumption of drilling tools while maintaining the condition of the drill rig;
  • Rod handling system with a capacity of carrying up to 27 drill rods, and drilling depth can reach 42 meters;
  • The hydraulic longhole drilling rig is configured with medium/low pressure hydraulic drifters from Montabert. Hydraulic hoses and seals do not operate in high pressure conditions since the hydraulic drifter works under low oil pressure, thus resulting in prolonged service life, high reliability and less maintenance cost when compared to high pressure hydraulic drifter;
  • Low-emission Cummins diesel engine paired with hydraulic four-wheel-drive transmission system is included in the hydraulic longhole drilling rig, achieving stepless speed adjustment, high gradeability and fast walking speed;
  • The exhaust purification device is equipped to greatly improve the underground working environment;
  • Dual-circuit wet multi-disc service brake and multi-pad parking brake provide safe braking and high stability; In addition, emergency stop buttons at multiple points significantly enhance the safety during underground mining and tunneling operations;
  • The compact structure of the drilling rig makes steering more flexible, the powerful articulated chassis allows for steering angle of ±40° and rear axle swing angle of ±10°, enabling the drilling rig to easily pass through tunnels with a minimum width of 2.5m, and safely achieve right angle turns in a 3m wide tunnel;
  • The hydraulic longhole drilling rig has a centralized control panel which offers easy operation and gives operator good visibility; In addition, the function of remote control + cable control improves the operation safety and maneuverability;
  • The hydraulic long hole drilling rig adopts a multi-stage oil cylinder direct propulsion system that is standard for the high-power rock drill, ensuring stable thrust during deep drilling.
  • It’s equipped with the original power control valve block from Montabert, France, enabling it to feature automatic impact pressure adjustment, and anti-jamming function. This ensures smooth and accurate hole drilling during the operation.
  • This drilling equipment adopts auto-stop device and bottom hole debris clearing function, automatically stopping pushing and impacting after finishing the drilling process.
  • The hydraulic drilling rig uses Kaishan brand energy-saving integrated direct-connected screw air compressor for smooth operation and easy maintenance.
