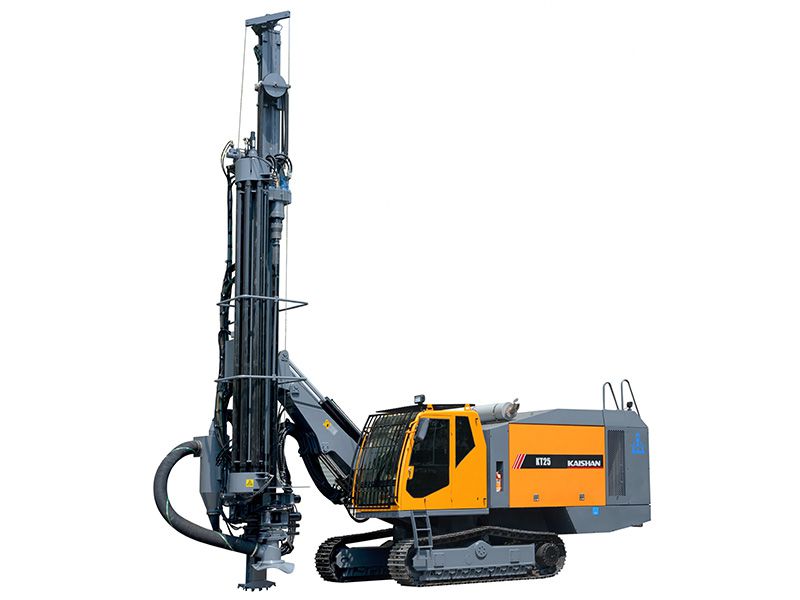

Integrated Surface DTH Drilling Rig, KT25

Down-the-hole drill rig for open-pit mining

Integrated Surface DTH Drilling Rig, KT25

This machine is a marvelous creation that is produced based on efforts devoted by Zhejiang Kaishan Compressor. It is especially suitable for operators working in large-scale open-pit mines. The drilling machine is driven by a powerful engine that activates the interior hydraulic movement system, high-pressure air end and DHT hammer, through which it can drill rocks efficiently, change angles and move smoothly. The machine is equipped with several advanced modules, such as a hydraulic dust collector that can reduce harm to environment, a hands-free hydraulic rod handling module, a floating rig joint protecting rod thread and an anti-jamming module. With these features, the machine can be operated by one person. It also provides a cozy working environment for operators, with an air-conditioner installed in its large cab.

Request a Quote
Technical Specifications
Model KT25
Dimensions during transportation 12200×2840 ×3620mm
Total weight 25800kg
Rock hardness F=6-20
Hole diameter ⌀152-203mm
Drilling depth 35m
Ground clearance 430mm
Tramming speed 3km/h
Gradeability 25°
Total power 328kW
Diesel engine Caterpillar C13
Free air delivery of compressor 26m³/min
Discharge pressure of compressor 350 psi
Rotation speed 0-118r/min
Maxium torque 6.1kN.m
Maximum push force 65kN
Tilt angle 125°
Swing angle Left: 33°, right: 97°
Boom swing angle Left: 15°, right: 42°
Frame oscillation angle Up: 10°, down: 10°
Feed extension 1800mm
DTH hammer K5, K6
Rod diameter ⌀102×5000/Ø127×5000mm
Dust collector Dry (hydraulic cyclonic laminar flow)
Rod handling Hands-free rod handling
Anti-Jamming Electro-hydraulic control anti-sticking
Rod lubrication Automatic lubrication
Rod thread protection Floating clamp is equipped for protection
Drilling process display Real-time display of drilling angle and depth
