Well Drilling Rig, JR400
- Diesel engine: FAWDE 118kW
- Feed pressure: 0-18T
- Lifting force: 30.4T
- Weight: 9.8T
- Overall dimension: 4.3×2.0×2.45m
+
Well Drilling Rig, JR480
- Maximum drilling depth: 400m-450m
- Borehole diameter: Ø105-Ø325mm
- Working air pressure: 1.2-3.5MPa
- Air consumption: 16-55mØ/min
- Drill rod length: 6m
+
Well Drilling Rig, JR500
- Diesel engine: FAWDE 118kW
- Feed pressure: 0-18T
- Lifting force: 30.4T
- Weight: 10T
- Overall dimension: 4.3×2.0×2.7m
+
Well Drilling Rig, JR600
- Diesel engine: FAWDE 140kW
- Feed pressure: 0-23T
- Lifting force: 39.8T
- Weight: 12T
- Overall dimension: 4.3×2.25×2.8m
+
Well Drilling Rig, JR200
- Diesel engine: Yuchai 76kW
- Feed pressure: 0-7T
- Lifting force: 15.2T
- Weight: 5.2T
- Overall dimension: 3.6×1.35×1.95m
+
Well Drilling Rig, JR260
- Diesel engine: Yuchai 76kW
- Feed pressure: 0-7T
- Lifting force: 16T
- Weight: 5.8T
- Overall dimension: 3.6×1.5×2.25m
+
Well Drilling Rig, JR300
- Diesel engine: Yuchai 92kW
- Feed pressure: 0-8T
- Lifting force: 20T
- Weight: 6.4T
- Overall dimension: 3.7×1.7×2.3m
+
Well Drilling Rig, JR300
- Diesel engine: Yuchai 92kW
- Feed pressure: 0-11.5T
- Lifting force: 20T
- Weight: 7.2T
- Overall dimension: 3.7×1.7×2.3m
+
Well Drilling Rig, JR350S
- Maximum drilling depth: 300m
- Borehole diameter: Ø105-Ø325mm
- Working air pressure: 1.2-3.5MPa
- Air consumption: 16-55m³/min
- Drill rod length: 6m
+

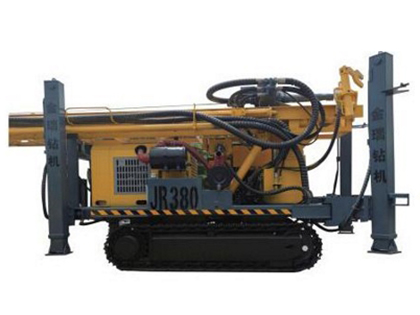

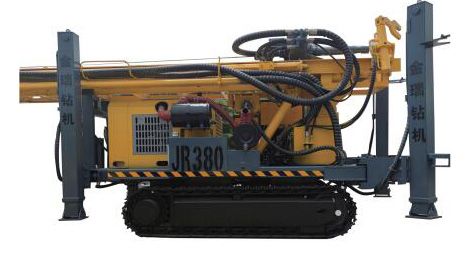

Well Drilling Rig, JR380S
- Maximum drilling depth: 300m-350m
- Borehole diameter: Ø105-Ø325mm
- Working air pressure: 1.2-3.5MPa
- Air consumption: 16-55mØ/min
- Drill rod length: 6m
