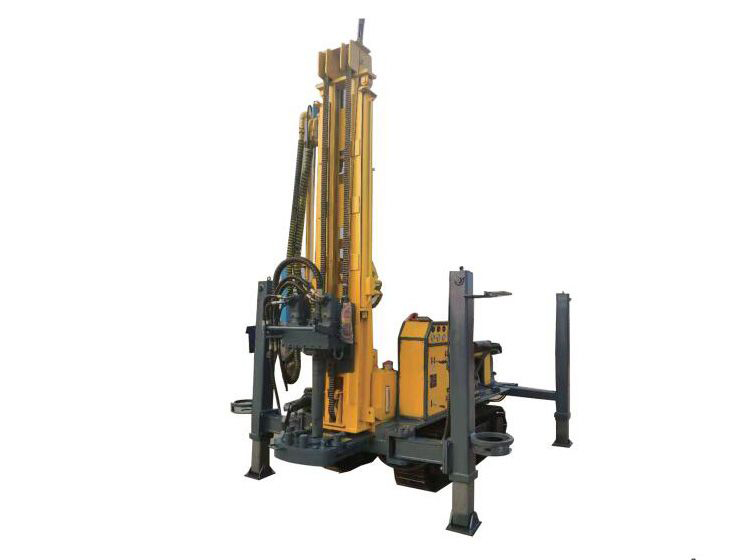

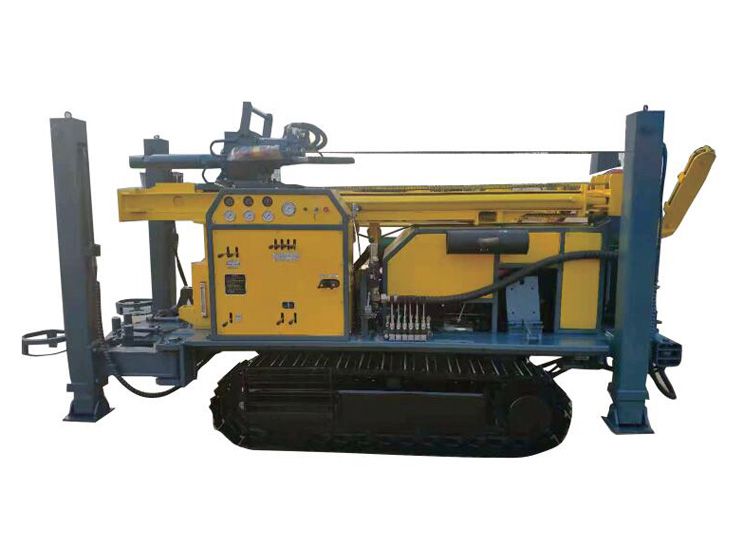

Well Drilling Rig, JR200

Well Drilling Rig, JR200 Structure Diagram

JR200 well drilling rig is designed to deal with industrial construction drilling, civil engineering and geothermal drilling and water well drilling projects. This geothermal drilling rig is designed with compact structure, rapid penetration, excellent flexibility and high work efficiency.

Technical Specifications
Diesel engine (kW) Yuchai 76
Feed pressure (T) 0-7
Lifting force (T) 15.2
Drive head stroke (m) 3.4
Slow lifting speed (m/min) 8
Slow feed speed (m/min) 0-12
Fast lifting speed (m/min) 26
Rotation torque (N.m) 6500
Rotation speed (r/min) 30-71
Winch lifting force (T) 1.1
Weight of drilling rig (T) 5.2
Overall dimension of drilling rig (m) 3.6×1.35×1.95
