Integrated Surface DTH Drilling Rig, KT9C

Down-the-hole drill rig for open-pit mining

Integrated Surface DTH Drilling Rig, KT9C

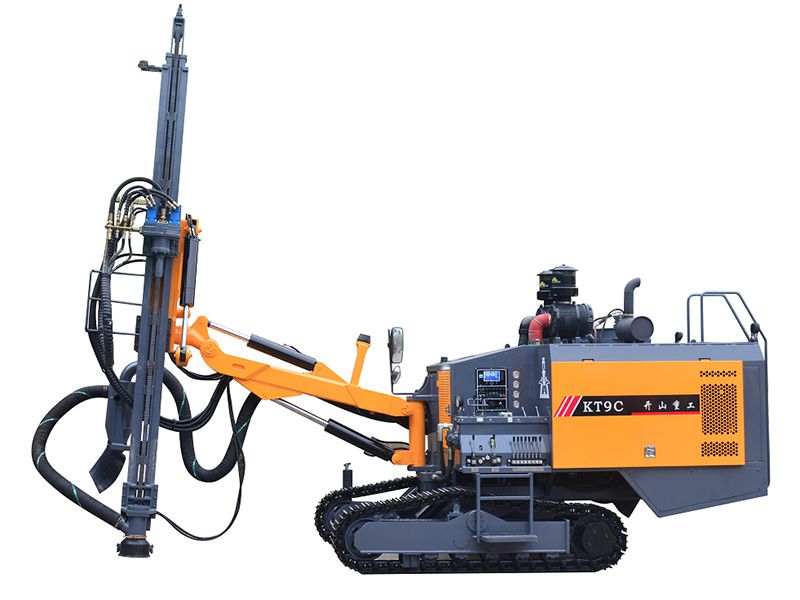

This machine is tailored with a high-efficiency and energy-saving drilling rig for small and medium-sized open-pit mines, quarries and infrastructure construction sites. The machine’s screw air compressor and hydraulic pump are powered by an engine with a two-terminal output, which enables the compressor to function in full speed and drill rocks efficiently. The engine comes from Cummins which meets China Stage III emission standards. The rig is equipped with an oscillator that brings a larger pitch and guarantees excellent stability in different terrain. The mining machine is also equipped with a durable sebific duct and an advanced dust collector that is aimed to reduce dust pollutants. All components are in a clear layout, allowing for an easy upkeep or repair.

Request a Quote
Technical Specifications
Model KT9C
Rock hardness F=6-20
Hole diameter ⌀100-125mm
Hole diameter 21m
Tramming speed 2.5/4.0km/h
Gradeability 25°
Ground clearance 430mm
Total power 194kW/205kW
Diesel engine Cummins QSC8.3-C260-30 Yuchai YCA08280-T300
Free air delivery of compressor 17m³/min
Discharge pressure of compressor 238 psi
Dimensions 8150 ×2260 ×2950/3200mm
Total weight 12000kg
Rotation speed 0-120r/min
Maxium torque 2.8kN.m
Maximum push force 32kN
Boom lift angle Up: 57°, down: 20°
Tilt angle 114°
Swing angle Left: 35°, right: 95°
Boom swing angle Right: 18°, left: 50°
Frame oscillation angle ±10°
Feed length 3490mm
Feed extension 900mm
DTH hammer K40
Rod diameter ⌀76×3000mm
Dust collector Dry (hydraulic cyclonic laminar flow)
